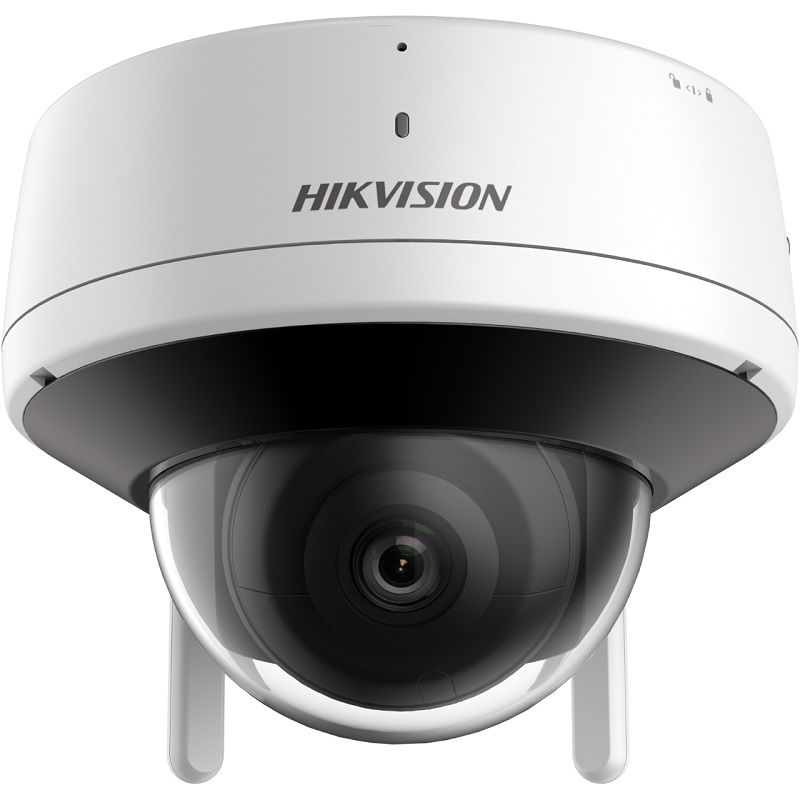

Camera IP Hikvision Dome DS-2CV2121G2-IDW WiFi 2MP 2.8mm

Características Principais



Imagens de alta qualidade com resolução de 2 MP
Percebendo a conexão Wi-Fi e fácil instalação
Oferece segurança em tempo real por meio de áudio bidirecional integrado
Eficiente tecnologia de compressão H.265
EXIR 2.0, tecnologia infravermelha avançada com infravermelho de longa distância
Resistente à água e poeira (IP66)
Compatível com cartão micro SD / SDHC / SDXC de até 256 GB


Especificações


CAMERA
Image Sensor1/2.8″ Progressive Scan CMOS
Min. Illumination0.005 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
P/NP/N
Wide Dynamic Range120 dB
Day & NightICR Cut
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
LENS

Lens Type & FOV



2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°

ApertureF1.6
Lens MountM12
ILLUMINATOR
Smart Supplement LightYes
IR RangeUp to 30 m
Wavelength

850 nm

VIDEO
Max. Resolution1920 × 1080
Main Stream

50Hz: 25 fps (1920 × 1080, 1280 × 720)

60Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25 fps (640 × 360)

60Hz: 30 fps (640 × 360)
Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Bit Rate ControlCBR/VBR
AUDIO
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)/16 to 64Kbps(AAC)
NETWORK
Simultaneous Live ViewUp to 6 channels
APIISAPI, SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
User/Host

Up to 32 users

3 levels: Administrator, Operator and User
SecurityPassword protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientWi-Fi: iVMS-4200



Web BrowserLocal service: Chrome 57.0+, Firefox 52.0+



WI-FI
Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol802.11g/n: OFDM



Frequency Range2.412 GHz - 2.472 GHz
Channel Bandwidth20/40 MHz
Modulation

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM
Transfer Rate300 Mbps
Wireless Range

Up to 120 m (The performance varies based on actual environment)

Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsMirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR≥ 52 dB
INTERFACE
Built-in MicrophoneYes
Built-in SpeakerYes
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
EVENT
Basic EventMotion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
GENERAL
Linkage MethodUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture, audible warning
Web Client LanguageEnglish
General FunctionAnti-flicker, heartbeat, password reset via e-mail
Software ResetYes
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%
Power Consumption and Current12 VDC, 0.6 A, max. 7 W
Power InterfaceØ5.5 mm coaxial power plug
Camera Dimension

Ø126.0 × 96.1 mm (Ø5.0″ × 3.8″)

Package Dimension170 × 170 × 150 mm (7.0" × 7.0" × 5.9")
Camera WeightApprox. 590 g (1.3 lb.)
With Package WeightApprox. 989 g (2.2 lb.)
APPROVAL
EMC

FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
RF

FCC ID (FCC Part 15.247(BT or 2.4G));

IC ID (RSS-247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);

KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);

ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)



Safety

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (IEC/EN 60950-1)



Environment

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)



ProtectionIP66 (IEC 60529-2013)
